|Author||Fredrik Ahlström (FluBBa)|
This is a Jail Break - Arcade emulator for the NDS.
DLDI patch the emulator for your flashcard.
Create a folder named acds in either the root of your flash card or in the data folder.
Put jailbrek.zip into a folder where you have arcade roms.

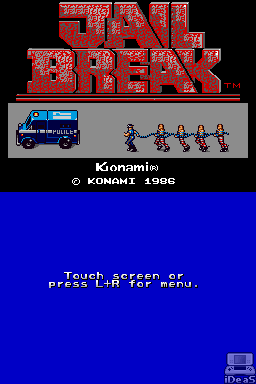

When the emulator starts, it will try to load Jail Break automatically on startup.
- Load Game - Choose a game to load.
- Load State - Load a previously saved state for the currently running game.
- Save State - Save a state for the current game.
- Save Settings - Save the current settings.
- Reset Game - Reset the currently running game.
- Autofire - Select to enable autofire.
- Controller - 2P start a 2 player game.
- Swap A/B - Swap which NDS button is mapped to which arcade button.
- Display - Scaled or unscaled screenmode (L/R to scroll screen up/down).
- Scaling - Flicker or barebones lineskip.
- Gamma - Adjust gamma (brightness).
- Disable Foreground - Turn on/off foreground rendering.
- Disable Background - Turn on/off background rendering.
- Disable Sprites - Turn on/off sprite rendering.
- Speed - Switch between speed modes.
- Normal - Game runs at it's normal speed.
- 200% - Game runs at double speed.
- Max - Game runs at 4 times normal speed (might change in the future).
- 50% - Game runs at half speed.
- Autoload State - Toggle Savestate autoloading.
- Autosave Settings - Save settings when leaving menu if any changes are made.
- Autopause Game - Toggle if the game should pause when opening the menu.
- Powersave 2nd Screen - If graphics/light should be turned off for the GUI screen when menu is not active.
- Emulator on Bottom - Select if top or bottom screen should be used for emulator, when menu is active emulator screen is always on top.
- Debug Output - Show an FPS meter for now.
- Autosleep - Does not work.
- Lot of settings for the actual arcade game, difficulty/lives etc.
L+R or Touchscreen - Open up menu
D-Pad or Touchscreen - Navigate menus
A or Double tap - Select an option
B or Top of the screen - Go back
R/L or Touchscreen - Switch between tabs
Select - Insert coin
Start - Start
D-Pad - Move character
A - Change weapon
B - Shoot
Tested on iDeaS emulator.
It has bugs in the sprite rendering and no tile priority support.
- Added Jail Break Bootleg.
- Added save states.
- Added support for flipped sprites.
- Added VLM5030 soundchip.
- Code clean up.
- Lots of fixes.
- Initial version, plays Jail Break.
Huge thanks to Loopy for the incredible PocketNES, without it this emu would probably never have been made.
- Dwedit for help and inspiration with a lot of things.
- Nicola Salmoria, for the MAME driver.
- More MAME people + Maxim for the SN76496 info.
