KDD's 3D Editor
General
AuthorKing Dodongo
Last Updated2011/04/17
TypeDemos
Version0.2
LicenseMixed
Links
Download
Website

This is a DS homebrew application for the DS to make 3D-Models.

Installation

Download and extract file.

DLDI patch .nds file and copy it to the root directory of the card.

User guide

You can only create single Polygons (Quad's and triangle), change color for every polygon and for the background.

It saves 3d-models to a external file (model1.k3d - model5.k3d) on the root of flashcard.

Note: Works with Sodokuhax.

Controls

D-Pad - Navigate in the menu

A - Select options

B/Start - Go back

Polygon Edit Mode:

D-Pad - Move on the x- and z-axis

A/B - Move up and down (y-axis)

X - Select the 3 or 4 points of the polygon

Select (hold) - Submenu

Up/Down (in submenu) - Switch to another polygon

Left/Right (in submenu) - Switch between color values (Red,Green,Blue)

A/B (in submenu) - Change current color-value

Free Cam Mode:

D-Pad - Look around

A/B - Move forward/backward

Save/Load:

Left/Right - Select file

A - Save/load

Media

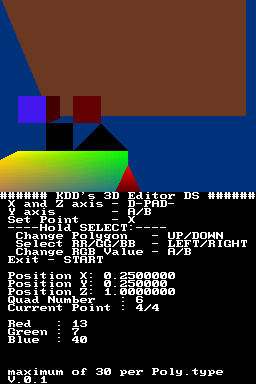

KDD's 3DEditor DS v0.1 (KingDodongoTS)

Known issues

The game freezes while using the save/load function without DLDI Patch.

Changelog

v0.2

  • Add save/load function.

v0.1

  • First release.
