3dfetch 3DS: Difference between revisions

3dfetch
3dfetch
General
Author	aliceinpalth
Type	System Tools
Version	1.10/11
License	Mixed
Last Updated	2017/07/01
Links
	Download
	Website
	Source

← Older edit

Latest revision as of 12:12, 26 July 2024

3dfetch is a 3DS homebrew application that can display varies information of your 3DS in pretty colors.

Similar to Linux's screenfetch script, but unsigned and executed on a Nintendo 3DS. RSF file based off of this dummy RSF. Mainly developed as a method for learning 3DS homebrew toolkits, libraries, and build environments.

Features

Pretty colors.
Cycle through text colors using the d-pad, and background colors using the L and R buttons.
Press the A button to take a screenshot, saved to the SD card root as 3dfetch_day_month_year_x.jpg.
All information dynamically grabbed from 3DS' hardware.
New 3DS and old 3DS compatible.
Press select for a configuration menu.
Use in tandem with imgurup-3ds for an easy sharing experience.

Installation

Installing

Available as a CIA/QR code.

Copy .cia to your SD card and install it with the CIA manager of your choice. Or you can get it on TitleDB within FBI.

Building

makerom to create the CIA.
3ds-tool to recompile the ROM filesystem.
bannertool to create the banner and icon files.
A fork of lpp-3ds found here which includes expanded functionality. It is advised to use the compiled binary (lpp-3ds.elf) included in the repository.

To compile:

CIA - Run make to build an installable CIA-file.
3DSX - Run make 3dfetch.3dsx instead and merge the /3ds folder with the one on your SD card.
Network-sent 3DSX - If you would like to have 3dfetch be sent via network to your console, open up Homebrew Launcher, press Y and run make 3dsx instead.

User guide

Configuration

3dfetch can optionally be configured by creating a file at the root of your SD card called 3dfetch.conf. At present, the following options are available:

showAnimation:true | false - Enable/disable the little shell animation on startup.
showSplash:true | false - Enable/disable the CFW splash on the bottom.
showCFW:true | false to Enable/disable CFW detection.

You can also use the configuration menu within the homebrew. All changes to the configuration are saved in a config file.

Controls

A - Take screenshots

D-Pad - Cycle through text colors

L/R - Change background colors

Select - Config menu

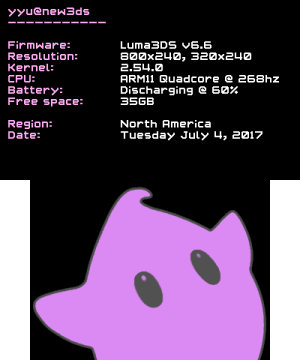

Screenshots

Changelog

v1.10/11 2017/07/01

(1.11) Fixed white background not being properly available.
Added a pretty animation to simulate typing a shell command.
Cycling left text colors now additionally cycles the CFW logo color.
Exact battery percentage is shown.
Luma CFW now displays the version number with it.
Added detection for Cakes CFW.
Added detection for Corbenik CFW.
Added detection for RX Tools CFW.
Added detection for Rei CFW.

External links

GitHub - https://github.com/aliceinpalth/3dfetch
